Pir motion sensor

What is a PIR sensor and how does it work? Types of luminaires with PIR motion sensors or passive infrared sensors. One of the most common types of sensors, PIR, uses infrared light to detect physical movement. Microwave sensors. This type of sensor transmits microwave pulses and measures their reflection from various surfaces. Ultrasonic sensors. Tomographic sensor. Combined motion sensors.

How to test a PIR sensor?

Mount the transducer on a table or wall parallel to the scanning surface. Check your circuit and turn it on to test your PIR motion sensor. Wait 10 to 60 seconds for the PIR sensor to calibrate. If the LED lights up, wait for it to go out.

What are PIR sensors used for?

Interior light switch with PIR presence sensor. A PIR based motion detector is used to detect the movement of people, animals or other objects. They are often used in intruder alarm systems and automatically activated lighting systems. These are usually referred to simply as PIR or sometimes PID for passive infrared detectors.

What are the benefits of PIR motion sensor lights?

Criminal deterrence. Using light outside the house can deter thieves.
Ease. Whether you live alone, are married or have children, these flashlights will come in handy when people come home at night.
Discourage animals.
Economic savings.
More environmentally friendly.
Read more about motion-sensitive lighting.

Night vision camera

What's the best PIR sensor?

Top 10 PIR Sensors for Motion Detection and Auto Light Control HCSR501 PIR Pyroelectric Infrared Infrared Motion Sensor ($) Qunqi 10pack HCSR501 ($) Grove PIR Motion Sensor ($) LEDENET 12V 24V PIR Sensor ($) Adafruit PIR Motion ($) ) Jdeal Pyroelectric Infrared Motion Sensor ($) Leegoal 5x PIR Pyroelectric Infrared Motion Sensor (4.

Do you use a PIR sensor?

While this may sound like something out of a spy movie, you probably use PIR sensors every day. This is the same sensor found in most modern security systems, circuit breakers, garage door openers, and similar devices that require certain electrical devices to operate only in the presence of people.

What is a pir sensor and how does it work diagram

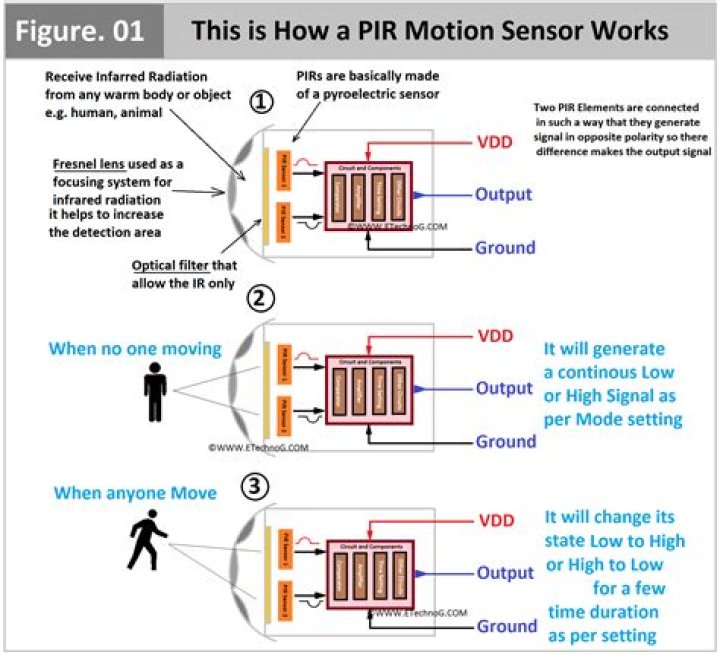

PIR sensors can detect small fluctuations in the infrared range. Whenever an object passes through the sensor area, it generates infrared radiation due to friction between the air and the object and the PIR is detected. The main component of the PIR sensor is the pyroelectric sensor as shown in the picture (rectangular glass behind a plastic cover).

What is a pir sensor and how does it work video

The PIR sensor detects infrared light emitted by a hot object. It consists of pyroelectric sensors that convert temperature changes (due to incident infrared radiation) into an electrical signal. When infrared light hits the glass, an electric charge is created.

What is a pir sensor and how does it work pdf

What is the PIR sensor PDF? A passive infrared (PIR) sensor detects changes in infrared radiation from a moving warm-blooded object within its detection range. Depending on the change in infrared radiation, the generated voltage changes, which is amplified and used to turn on the webcam and lighting system via a relay.

How do PIR motion sensor work?

How PIRs work. PIR sensors are more complex than most of the other sensors described in these manuals (for example, photocells, FSRs, and tilt switches), because there are different
The indicator flashes. Now when the PIR detects motion, the output contact will raise and the LED will illuminate.
signaling
PIR sensor with RELAY control module

How does a motion/heat (PIR) sensor work?

The detection area is cone-shaped and extends outside the room.
Browning Trail cameras are able to recognize animals or people by detecting changes in infrared light that occur when an object enters the camera's detection area.
Large animals such as deer and moose are easier to spot than smaller animals such as birds and raccoons.

What is a pir sensor and how does it work images

A security camera's passive infrared (PIR) sensor detects intruders by detecting differences in infrared radiation between human bodies and other objects. A passive sensor detects infrared radiation and converts it into an electrical signal. When the signal level exceeds a certain value, the camera blinks.

What is a pir sensor and how does it work pictures

The PIR mode is a feature that, when enabled on a security camera, will only take a photo when the PIR sensor is enabled. As the name suggests, passive infrared sensors detect the movement of objects in their field of view by measuring the infrared light emitted or reflected from those objects.

What is a pir sensor and how does it work youtube

Typically, a PIR sensor can detect animal/human movement within the range of requirements. PIR consists of a pyroelectric sensor that can detect different intensities of infrared radiation. The detector does not emit energy itself, but receives it passively. Detects infrared radiation from the environment.

Do PIR motion sensor work in the darkness?

The short answer is yes. Motion detectors work in complete darkness as none of the above motion detectors rely on using images to detect motion. Instead of images, PIR motion sensors detect changes in the received infrared level. Ultrasonic motion sensors also don't need an image.

How to test a pir sensor circuit

The PIR sensor circuit consists of three pins, a power pin, an output signal pin, and a ground pin. The PIR sensor circuit has a ceramic substrate and filter window as shown, and it also has a dome-shaped structure called a Fresnel lens.

How to test a pir sensor valve

PIR sensor test: i. Connect the PIR sensor to the breadboard, making sure the ground goes to the -- terminal and power goes to the + terminal of the PIR sensor. II. Connect the red LED to the OUT output of the sensor. Make sure the LED is pointing in the correct direction.

How to connect the IR and PIR sensor to the breadboard?

Connect the infrared sensor to the breadboard with a 3-pin infrared interface cable. Connect the ground to the - terminal, the power supply - to the + terminal of the PIR sensor. V. Connect the red LED to the OUT output of the sensor. Make sure the LED is pointing in the correct direction.

How do I set up my Pir?

After connecting the model, insert the batteries and wait 3060 seconds for the PIR to stabilize. During this time, the LED may flicker slightly. Wait for the LED to go out and then walk towards it with a hand gesture, etc. to watch the LED light up. There are several options you can use with PIR.

What are the timeouts associated with the PIR sensor?

There are two timers assigned to the PIR sensor. Tx timeout is one thing - how long the LED stays on after motion is detected can be easily set on the Adafruit PIR as there is a potentiometer.

How to test a pir sensor battery

It seems that most small hobby sensors use BISS0001 (Micro Power PIR motion detector chip), certainly a very cheap chip. This chip takes the output of the sensor and performs minor operations to produce the digital output of the analog sensor.

How do I connect a PIR sensor to a microcontroller?

It is very easy to connect PIR sensors to the microcontroller. The PIR acts as a digital output, so all you need to do is make sure the pin is either high (detected) or low (not detected). You will most likely want to recreate, so make sure the jumper is in the H position. Apply 5V to the PIR and ground.

What is the tx/ti timeout on the PIR sensor?

There are two timers assigned to the PIR sensor. One is the Tx timeout - how long the LED stays on after motion is detected. The second is the Ti timeout, that is, the time during which the LED is guaranteed to be off if there is no movement.

What is a differential change in PIR sensor?

When a hot body, such as a human or animal, passes by, it grabs half of the PIR sensor first and causes a positive change in the difference between the two halves. When a hot body leaves the detection zone, the reverse happens when the sensor makes a negative differential change.

What is non-retriggering PIR sensor?

You may find that when you plug in a PIR sensor as mentioned above, the LED won't turn on as it goes by, but will instead turn on and off about every second. This is called a non-repeatable start.

What is PIR motion detector?

PIR motion sensor for automatic control of outdoor lighting. A PIR based motion detector is used to detect the movement of people, animals or other objects. They are often used in intruder alarm systems and automatically activated lighting systems. These are usually referred to simply as PIR or sometimes PID for passive infrared detectors.

What is a wireless motion sensor?

Wireless motion sensors Wireless motion sensors are mainly used on doors and windows. They can be easily placed and easily installed. When the device detects motion or motion, it can send signals to the base unit, triggering an alarm.

What is a motion sensor light switch?

By installing the motion sensor switch, the light will turn on automatically when you enter the room. If the motion sensor no longer detects movement, the light will turn off automatically after a certain time. There are times when you want to disable the motion detection switch and .

What are the benefits of pir motion sensor lights outdoor

Motion sensors protect your home, family and more. However, using it offers additional benefits. Using light outside the house can deter thieves. A burglar is more likely to break into a dark house than a well-lit house.

Do motion sensor lights keep animals away at night?

Motion sensors can help you make sure you have enough light to see everything around you. If you have issues with animals, from rabbits to spears, motion sensors can help you stay out of your home. Many desert animals are nocturnal and eat at night.

Which outdoor motion sensor light is the most accurate?

The Hmcity Outdoor Motion Sensor with Updated PIR Motion Sensor is a highly accurate option that also offers a wide 120-degree detection angle, making it one of the most comprehensive sensors you can find.

How many lumens do you get with a motion sensor light?

You get 3000 lumens of super bright light to ensure your entire driveway or porch is bathed in light. With its 72-foot motion sensor range, it's ideal for covering areas even larger than your average vacation home.

What are the benefits of pir motion sensor lights indoor

Here are the advantages and benefits of a PIR sensor: ➨ It reliably detects indoor movements, both in daylight and in the dark. It consumes less energy compared to a microwave sensor.

What are the advantages of PIR motion sensor?

When a person/animal is within range of the PIR motion sensor, it receives heat energy and thus detects movement. It reliably detects movements indoors and during the day or in the dark. It consumes less energy compared to a microwave sensor.

What are the benefits of led motion sensors?

LED sensors that control the lighting in a home can provide real benefits, and some of these benefits are profitable. The ability to control your home lighting with a motion sensor means less energy is wasted when the lights are on.

How does indindoor motion sensor lighting work?

The interior lighting of motion detectors can be a real deterrent to theft. The LED system that controls the motion detector light can be adjusted in sensitivity. You control the frequency and ease with which you turn on the light.

Should you install motion sensor lights indoors or outside?

Installing motion-sensing lights outdoors seems like an obvious upgrade for your home. But there are also good reasons to install motion sensor fixtures in a room. LED sensors that control the lighting in a home can provide real benefits, and some of these benefits are profitable.

What are the benefits of pir motion sensor lights battery operated

Greater electrical efficiency Using a motion sensor to control the lighting in your home reduces energy waste when the lights are on. With motion sensors, the light only turns on when someone uses the room.

What is a passive infrared sensor (PIR)?

With passive infrared (PIR) sensor, this LED strip module only works when motion is detected. This makes it useful for lighting areas such as a closet, where you only need light for a short time, but don't really want to wiggle or follow the remote.

Do you need an electrician to install PIR motion sensor flood lights?

Welcome to the Powerbee range, powerful, clear, reliable and easy to install. You do not need an electrician to install these lamps. They are designed so that anyone can install them in minutes. Just select an area and screw or glue them in place.

Mixed reality

What are the benefits of pir motion sensor lights troubleshooting

The big advantage is that the PIR sensors do not constantly scan the room for changes, which saves energy. Dual Tech sensors are a combination of active and infrared sensors. They use both methods to identify a person and reduce the chance of error.

How do motion sensor closet lights work?

Your cabinet is always lit if it is equipped with motion sensor lighting. The lights go out and power consumption stops when the cabinet doors are closed. In the end you save a lot of energy. This allows you to keep your electricity bill within your budget.

Are motion sensor lights good for home security?

Home safety is about protecting your family and property. Motion sensors protect your home, family and more. However, there are other benefits to using it. Using light outside the house can deter thieves.

What are the benefits of pir motion sensor lights home depot

PIR motion indicators light up whether a moving person or object is within range or not. They are cheaper than active sensors, easy to use and consume less power than active sensors. They are usually integrated into appliances and home appliances in businesses or at home.

How to read ir spectra

What does a PIR motion sensor do?

PIR motion detector. The PIR sensor can detect when something is moving nearby. The sensor detects infrared radiation in the environment. If the pattern changes, the sensor will give a high signal. The helix microcontroller only needs to monitor this signal with an I/O pin to know if anything is moving nearby.

What is the power supply for hc-sr501 PIR sensor?

VCC is the power supply for the HCSR501 PIR sensor to which you connect the 5V pin of the Arduino. The output pin is a logic TTL output. LOW means no motion is detected, HIGH means no motion is detected.

How do I use the hc-sr501 without a microcontroller?

Since the output of the HCSR501 is HIGH or LOW, you can use this PIR motion sensor module without a microcontroller by connecting the output of the HCSR501 to a relay input to turn on the light, or to an active buzzer input to trigger an alarm. to be activated. will generate.

What is the measuring distance of the hc-sr501 motion sensor?

Measuring distance from 3 to 7 meters. The HCSR501 has a measuring angle of 110° to detect movements at a wide angle in front of the sensor. The following image shows a bottom view of the HCSR501 PIR motion sensor with all pins and potentiometers.

What does the code on the hc-sr501 mean?

The code is very simple and it just depends on whether pin #2 input is HIGH or LOW. They eventually print a message on the serial monitor when motion is detected. Like most PIR sensors, the HCSR501 takes some time to get used to the infrared energy in a room.

How to wire a motion detector?

Make sure the power is off before starting anything.
Now use a voltage probe to check the wires and make sure they are ■■■■.
Now remove the insert so that you can install the motion sensor in it.
Run all necessary cables to the lamp, then add a motion sensor to the lamp.

What is a motion sensor security alarm?

Motion detectors are the backbone of many security systems, providing the first line of intrusion prevention when detecting intruders in or around your home or office. Many motion detectors have options to send alerts, enable detectors, or enable built-in security cameras to record an event.

What is a motion sensor?

A motion sensor (or motion detector) is an electronic device designed to detect and measure motion. Motion sensors are primarily used in residential and commercial security systems, but can also be found in telephones, kitchenware dispensers, game consoles and virtual reality systems.

Ring 2 vs ring 3

How does a PIR motion sensor work?

The PIR sensor is working. The internal infrared sensor is split in half, half is positive and the other half is negative. For example, one half generates a signal by detecting the movement of a heated body and the other half generates the other signal. The difference between these two signals is generated as an output signal.
