In land surveying, a bearing is the clockwise or counterclockwise angle between north or south and a direction. For example, bearings are recorded as N57°E, S51°E, S21°W, N87°W, or N15°W.
How do you calculate bearings in surveying?
Bearings of lines may be calculated if bearing of one of the lines and the included angles measured clockwise between the various lines are given. Bearing of a line = given bearing + included angle.
What is the difference between an azimuth and a bearing?
Azimuth and bearings are often used interchangeably but there is a difference. An azimuth is the direction of travel indicated on a compass and expressed in degrees (135 degrees). A bearing describes an angle or difference from a point. On the compass, you use the north and south for the reference.
What are the types of bearing in survey?
- true bearings.
- grid bearings.
- magnetic bearings.
- compass bearings.
What is a bearing in civil engineering?
A bridge bearing is a component of a bridge which typically provides a resting surface between bridge piers and the bridge deck. The purpose of a bearing is to allow controlled movement and thereby reduce the stresses involved.
What is the difference between angle and bearing in surveying?
A bearing is an angle less than 90° within a quadrant defined by the cardinal directions. An azimuth is an angle between 0° and 360° measured clockwise from North. … An interior angle, by contrast, is an angle measured between two lines of sight, or between two legs of a traverse (described later in this chapter).
What is bearing of line?
Bearing of a line is the horizontal angle which a line makes with some reference direction also known as meridian.
How many types of bearings are there?
Here, we’ll look at the 6 most popular types: plain bearings, rolling element bearings, jewel bearings, fluid bearings, magnetic bearings, and flexure bearings. Plain bearings are the simplest type of bearing and are composed of just the bearing surface with no rolling elements.What is bearing and types of bearing?
TypeDescriptionRolling element bearingBall or rollers are used to prevent or minimise rubbingJewel bearingOff-center bearing rolls in seatingFluid bearingFluid is forced between two faces and held in by edge sealMagnetic bearingFaces of bearing are kept separate by magnets (electromagnets or eddy currents)
What is bearing and meridian?Bearing is the angle which a certain line make with a certain a certain meridian. Bearing with respect to true meridian is called true bearings while magnetic bearing is the angle which a line makes with respect to magnetic meridian.
Article first time published onWhat is Traverse method?
Traverse is a method in the field of surveying to establish control networks. It is also used in geodesy. Traverse networks involve placing survey stations along a line or path of travel, and then using the previously surveyed points as a base for observing the next point.
What is azimuthal bearing?
Azimuth measures angle from 0 to 360 degrees, whereas Bearing measures angle from 0 to 90 degrees. … Azimuth measures clockwise, but Bearing can measure in both directions, either clockwise or anticlockwise. Azimuth takes a set of measurements from North or South, whereas Bearing measures angles from North or South.
What is true bearing?
The direction to an object from a point; expressed as a horizontal angle measured clockwise from true north. Dictionary of Military and Associated Terms.
What is Quadrantal bearing system?

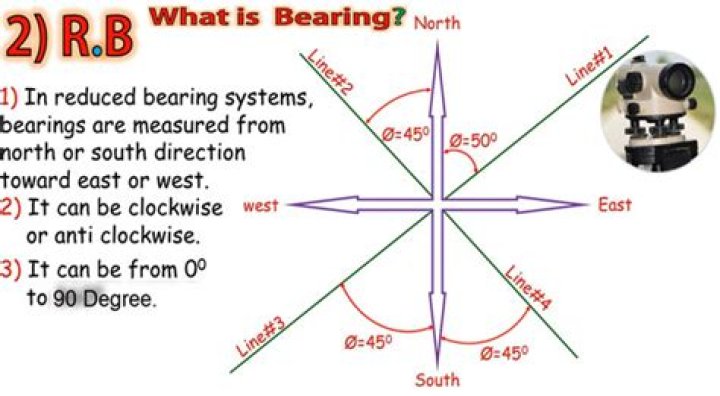

In Reduced Bearing (RB), the bearing of a survey line is measured either in a clockwise or anti-clockwise direction from either of the north or south direction whichever is close to the line. The reduced bearing is also known as Quadrantal Bearing System.
Why is bearing used?
Nowadays, bearings are one of the most commonly used machine parts because their rolling motion make almost all movements easier and they help reduce friction. Bearings have two key functions: They transfer motion, i.e. they support and guide components which turn relative to one another. They transmit forces.
What are the 3 rules of bearings?
- Always measure bearings from the North line.
- Always express your answers as three-figure bearings (so 60 ° 60\degree 60° would be 060 ° 060\degree 060°).
- Always draw and measure bearings clockwise.
What is a bearing direction?
A bearing provides a direction given as the primary compass direction (north or south), degree of angle, and an east or west designation. A bearing describes a line as heading north or south, and deflected some number of degrees toward the east or west. … The primary compass direction is north.
What is the difference between direction and bearing?
As nouns the difference between direction and bearing is that direction is the action of directing; pointing (something) towards while bearing is a mechanical device that supports another part and/or reduces friction.
What is difference between Angel and bearing?
As nouns the difference between angel and bearing is that angel is a divine and supernatural messenger from a deity, or other divine entity while bearing is a mechanical device that supports another part and/or reduces friction.
What is the type of bearing?
There are several types of bearings, the four main types are: ball bearings, cylindrical roller bearings, tapered roller bearings and needle bearings. While ball bearings are the most common mechanisms, each device has its advantages and disadvantages.
What is the bearing number?
A bearing number is composed of a basic number and a supplementary code, denoting bearing specifications including bearing type, boundary dimensions, running accuracy, and internal clearance.
What are the parts of a bearing?
- Inner Ring: The Inner Ring is the smaller of the two bearing rings. …
- Outer Ring: …
- Rolling Element: (Balls, Cylindrical Rollers, Spherical Rollers, Tapered Rollers, Needle Rollers): …
- Cage (Retainer): …
- Lubrication: …
- Other Optional Bearing components:
Where are bearings used?
Machines that use bearings include automobiles, airplanes, electric generators and so on. They are even used in household appliances that we all use every day, such as refrigerators, vacuum cleaners and air-conditioners. Bearings support the rotating shafts of the wheels, gears, turbines, rotors, etc.
What are the two main classes of bearing?
Types of Loads There are two main types of bearings: thrust bearings, which keep a round item spinning and in position while thrust is applied (a lazy susan, for example), and radial load bearings, which keep a spinning item in position in the radial direction (skateboard bearings, for example).
How do you identify a bearing?
The first digit indicates the width or height series (dimensions B, T or H). The second digit identifies the diameter series (dimension D). The last two digits of the basic designation identify the size code of the bearing bore. The size code multiplied by 5 gives the bore diameter (d) in mm.
What is dip in survey?
The dip angle, I (for inclination), is the angle that the total field vector makes with respect to the horizontal plane and is positive for vectors below the plane. It is the complement of the usual polar angle of spherical coordinates.
What is a compass survey?
Compass surveying is a type of surveying in which the directions of surveying lines are determined with a magnetic compass, and the length of the surveying lines are measured with a tape or chain or laser range finder. The compass is generally used to run a traverse line.
What is WCB surveying?
The horizontal angle made by the survey line with the magnetic north in the clockwise direction is the whole circle bearing (WCB) of that line. This system is also known as the azimuthal system.
What is latitude and departure?
LATITUDES AND DEPARTURES: Background The departure of a line is its projection on the east-west meridian and is equal to the length of the line times the sine of its bearing. The latitude is the y component of the line (also known as northing), and the departure is the x component of the line (also known as easting).
What is closing error?
Definition of error of closure 1 : the ratio of the distance by which a survey fails to close to the perimeter of the tract surveyed. 2 : the sum of the angles of a traverse as measured minus the true sum required by geometry. — called also closing error.
What is Bowditch method?
Bowditch Method: It is done when both linear and angular measurement with highly accuracy. According to Bowditch rule, error in linear measurement are directly proportional to square root of length of line and error in angular measurement are inversely proportional to square root of length of line.
